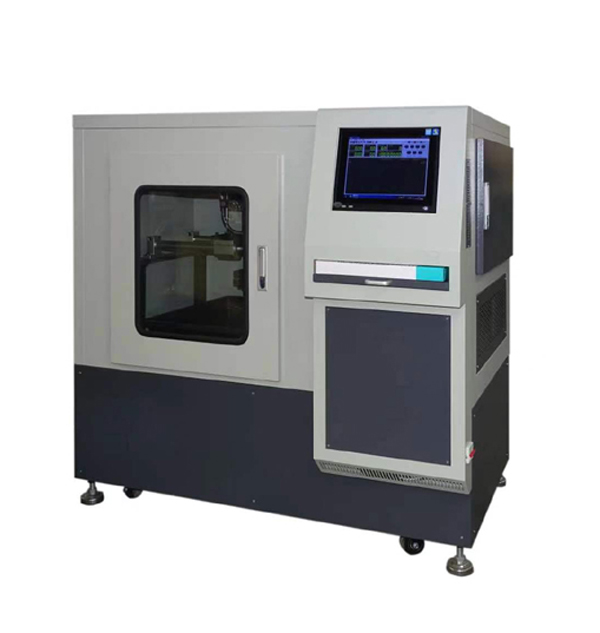

Automatic Asphalt Kuvanga Gutanga Tester (Igitabo)

Ibintu nyamukuru bya tekiniki:
Ubwoko bwubwenge: Mu buryo bwikora butanga kandi buka ibisubizo by’ibizamini; Kwishura byoroshye amakuru yamateka hamwe nibisohoka.
2. Kwerekana amakuru yo kugura amakuru: gupima imiyoboro yo hejuru no hepfo no kugenzura na sisitemu yo kugenzura byemejwe kugirango hasubizwemo amafaranga yo kwiyita mu kirere.
3. Icyemezo cyo kubona amakuru yo hejuru no kwihuta cyane: Ifata igishushanyo mbonera-kuri-digical ihinduka hamwe nigikorwa cya 16 hamwe no kugura 100 Khz.
4. Urwego rwo kugenzura ubushyuhe, gushishoza cyane no gushikama: kugenzura ubushyuhe bukorwa ukoresheje pwm modulation.
5. Nta guhungabana cyangwa kwiyongera mugihe utangiye cyangwa uhagarika moteri.
6. Urusaku ruto kandi nta ruhande rumenagura uruhande rwatumijwemo inkoni zoroshye hamwe nibiziga byibizamini bikoreshwa mubigenda ugereranije.
7. Umuvuduko ukabije wikigereranyo cyibizamini: ibiziga byikizamini hamwe nigitutu cyubutaka kuva kuri 0.5 kugeza kuri 1.3 MPA biboneka nkibikoresho byo guhitamo.
8. Igishushanyo mbonera kandi cyumukoresha

Ibipimo nyamukuru bya tekiniki:
Kwemera kwimura intera: 0 kugeza 25mm.
Guhitamo Gutahura: 0.01 mm.
3. Gutahura neza: ± 0.05 mm.
4. Intera yubushyuhe Ingingo: 30 ~ 80 ℃.
5. Guhitamo ubushyuhe: 0.1 ℃.
6. Kugenzura ubushyuhe Ukuri: ℃.3 ℃.
7. Umuvuduko wo Gutaka Igiti cyikizamini: 0.7 MPA ± 0.05 MPA.
8. Inshuro zigenda: Inshuro 42 / min ± 1 igihe / min.
9. Uburebure bwikigereranyo buboneka bwo kwipimisha: 30mm – 70mm

Sisitemu isanzwe
1. Gubona uburyo bwo guhindura: Umuyoboro umwe.
2. Gukusanya ubushyuhe: Umuyoboro umwe.
3. Kugenzura ubushyuhe: Umuyoboro umwe.
4. Ikarita yo kugura: igice kimwe.
5. Icapiro: imwe.
6. Mudasobwa: imwe.
7 Porogaramu ya sisitemu: imwe yashizweho.
Imbaraga Zitanga Amashanyarazi: 380V AC, 3.5 KW; 220v AC, 500 W.
9. Ibipimo ngenderwaho byumubiri: Uburebure × Ubugari × Uburebure: 1.6m × 1.2m × 1.6m.
10. Uburemere bwumubiri: Uburemere bwa Net = 860 kg

Ibikoresho byo gushyigikira asfalt:

Ikizamini cya Asfalt cya Asfalt cyikora nikikoresho cyingenzi mumwanya wubwubatsi bwa gisivili no kubaka umuhanda. Iki gikoresho gihanitse cyagenewe gusuzuma irwanya impuzandengo ya Asfalt kugeza kuri sisitemu zihoraho, zikunze kuvugwa nkimodoka. Gutobora nikintu cyingenzi kigira ingaruka kumuhanda mugihe gishobora gutera ingaruka z’umutekano no kongera ibiciro byo kubungabunga.

Inzira yo kugerageza ikubiyemo kugandukira ingero ya ASPHALT kugirango igenzure ibintu bigana ibintu bigana ibintu byukuri-byisi. Ikizamini cya Asfalt cya Asfalt gikora iyi nzira, kugirango ibisubizo bihamye kandi byukuri. Mugukoresha imitwaro itandukanye kuri asfalt ivanze, ikizamini kirashobora gupima ubujyakuzimu bwihariye mugihe, zitanga amakuru yingirakamaro kumikorere yibikoresho.

Inyungu nyamukuru zo gukoresha tester asfalt ya Asfalt ya Asfalt ni imikorere yayo. Uburyo gakondo bugerageza ni umwanya utwara igihe kandi usaba gutabara. Ibinyuranye, iyi sisitemu yikora yorohereza inzira yo kwipimisha, yemerera abashakashatsi kubona ibisubizo vuba kandi bagabanya ikosa ryabantu. Iyi mikorere ni ngombwa cyane cyane mubidukikije birimo kwipimisha byinshi aho ibyitegererezo byinshi bigomba gusuzumwa vuba.

Byongeye kandi, amakuru yakozwe na ACFALT ya Asfalt ya Asfalt yikora ni ingenzi mugutezimbere ivangura ryinshi. Nugusobanukirwa uburyo ibintu bitandukanye bitwara imihangayiko, injeniyeri birashobora gusobanura amashusho yo kongera kuramba no kugabanya amahirwe yo kwiyongera. Ibi ntibigurira ubuzima bwumuhanda gusa, ahubwo binatezimbere imiterere yo gutwara.

Muri make, icyiciro cya Asfalt cyikora kigira uruhare runini mu kubaka umuhanda ugezweho. Itanga ibisubizo byukuri, byikora byikora bifasha injeniyeri igishushanyo mbonera cya Asfalt kivanze, amaherezo zitera imihanda irambye kandi ifite umutekano. Mugihe icyifuzo cyibikorwa remezo byujuje ubuziranenge bikomeje kwiyongera, akamaro k’ibikoresho nkibi biziyongera gusa.
