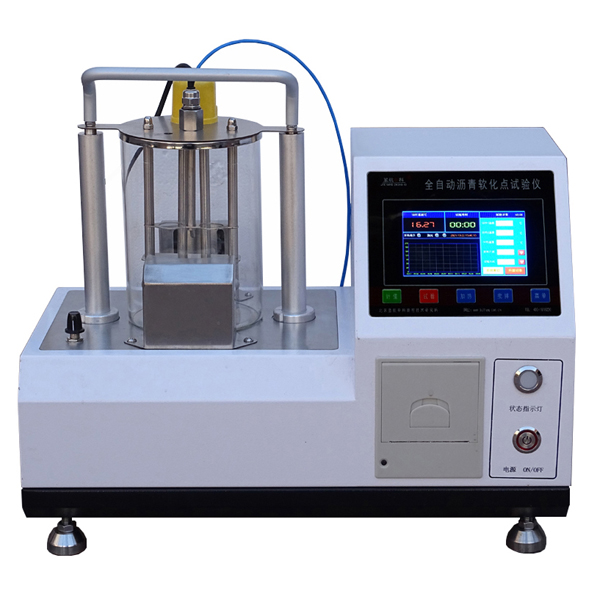

Ubuziranenge bwo hejuru asfalt asfalt yoroshye tester
Syd-2806g asfalt asfalt yoroshye tester yagenewe kandi yakozwe hakurikijwe ibisabwa muri Repubulika y’Ubushinwa GTG E20-2011 0606-2011 "Ikizamini cyoroshye cya bitumen (impeta nuburyo bwumupira)". Birakwiriye ko tugena aho duto two mu muhanda Petroleum asfalt na polymer yahinduye asfalt, kandi nabyo birakoreshwa mu kugena amababi ya peteroli Irashobora kandi gukoreshwa kugirango umenye aho byoroshye ibikoresho bya resin.
I. Ibiranga tekinike
Ubushakashatsi bw’amazi bushobora gukorwa kuri 5 kugeza kuri 90 ℃, cyangwa igeragezwa rya Glycerol rishobora gukorwa kuri 35 kugeza kuri 160 ℃.
2. Ifata igenzura microcomputer, ikanatera imbaraga, hamwe no gushyushya umurongo, kubungabunga igipimo gisanzwe cyo gushyushya 5 ℃ / min.
3. SENSOR ya Laser Beam ikoreshwa muguhita itamenya agaciro ka ASPHALT mugihe cyoroshye cya Asfalt saa 25.4mm. Nyuma yubushakashatsi burangiye, ibisubizo by’ikizamini byahise byerekanwe kandi byacapwe.
4. Igipimo cyo gushyushya gihita cyanditswe kandi kirashobora kubazwa nibibazo byibibazo byubushyuhe bwongera amateka ya buri munota.
5. Ifata kuri ecran 7 ya litiro ya LCD hamwe na sisitemu y’imikorere ibiri mu gishinwa no mucyongereza.
6. Urwenya rugizwe nubushyuhe bukabije, hamwe nibisobanuro nibipimo byumupira wicyuma bipakira impeta, imipira yicyuma, nibindi byuzuza ibisabwa bisanzwe.
7. Imiterere ya desktop igaragaramo sisitemu yo kugenzura itandukanijwe hamwe na sisitemu yo gushyushya (imwe ibumoso hamwe nundi iburyo), irinda ibice bya elegitoroniki kuva mubushyuhe bukabije mugihe cyo gupima gahunda.
II. Ibipimo ngenderwaho byihangana nibipimo
1.Inkunga yo gutanga amashanyarazi: AC (220 ± 10%) v, 50 hz
2. Gukemura ubushyuhe: 0.1℃
3. Gupima intera: Iyo ibintu byoroshye byurugero ari ≤ 80 ℃: 20 ℃ kugeza 90 ℃, koresha amazi yatoboye nkubushyuhe.
Iyo ingingo yoroheje yicyitegererezo irenze 80 ℃: 70 ℃ kugeza 160 ℃, glycerol ikoreshwa nkubushyuhe.
4. Igipimo cyo gushyushya: Mu buryo bwikora cyahinduwe kuri (5 ± 0.5) ° C / min iminota itatu nyuma yikizamini gitangiye.
5. Gushyushya Imbaraga: 650w
6. Gukomera Bicika: Magnetic irakurura, hamwe numuvuduko ukabije wa (0 – 300) kumunota, umuvuduko uhinduka.
7. Ingano nziza ya beaker: 1000 ml
8. Amakuru yerekana: gukoraho lcd byerekana
9. Imigaragarire: amafaranga 232c
10. Gukoresha ibidukikije: 15 ℃ kugeza 35℃
11.Ubushuhe bwubupfuri: ≤ 85%
12. Muri rusange ibiyobyabwenge: <700w
13. Ibipimo: 420mm × 270mm × 370mm (Uburebure × Ubugari × Uburebure)
14.Ibiroro: 12 kg
Icyitegererezo cyashyizwe mu mpeta no gushyuha ku gipimo kigenzurwa munsi y’uburemere bw’umupira w’icyuma. Ingingo yoroshye nubushyuhe aho disiki ya bitumen yoroshye kandi stag hepfo kumurongo wagenwe.
Tanaka Asp-6 yikora ikizamini cyoroshye cya Stof Inting by Impeta-na-Umupira Mehod hamwe nibikoresho bisa. Igikoresho cyamashanyarazi hamwe na beasile Asp ASP-6 Yizewe Yizewe Kuri Bitumen ya bitumen nibindi bikoresho. Ingano yacyo yoroheje yemerera gushyirwaho muri nyagasani, kandi ikubiyemo guhagarika umutekano mu gihe ibisekuruza byangiza kuva kera glycerin. Igipimo cyoroshye cyo gushushanya gifite ibara rya ergonomique ryerekanwa kugirango rigaragare cyane ibikorwa byo hejuru no gutiza. Igishushanyo mbonera cya chassis ni compact, yoroheje na premium.
1. Iki gikoresho cyerekana uburyo 32-but Ifite ibiranga ubushyuhe bwo mu rwego rwo hagati, igipimo giteganijwe cyo gushyushya, gutahura byikora byoroheje, gusubiramo neza no kubyara ibisubizo by’ibizamini.
2. Gutahura Algorithm, kandi ingaruka zabururu zo mu kirere zakozwe mu nzira yo gushyushya itangazamakuru mu bisubizo by’ikizamini irashobora kugerwaho.
3. Irashobora gukora ingero ebyiri icyarimwe.
