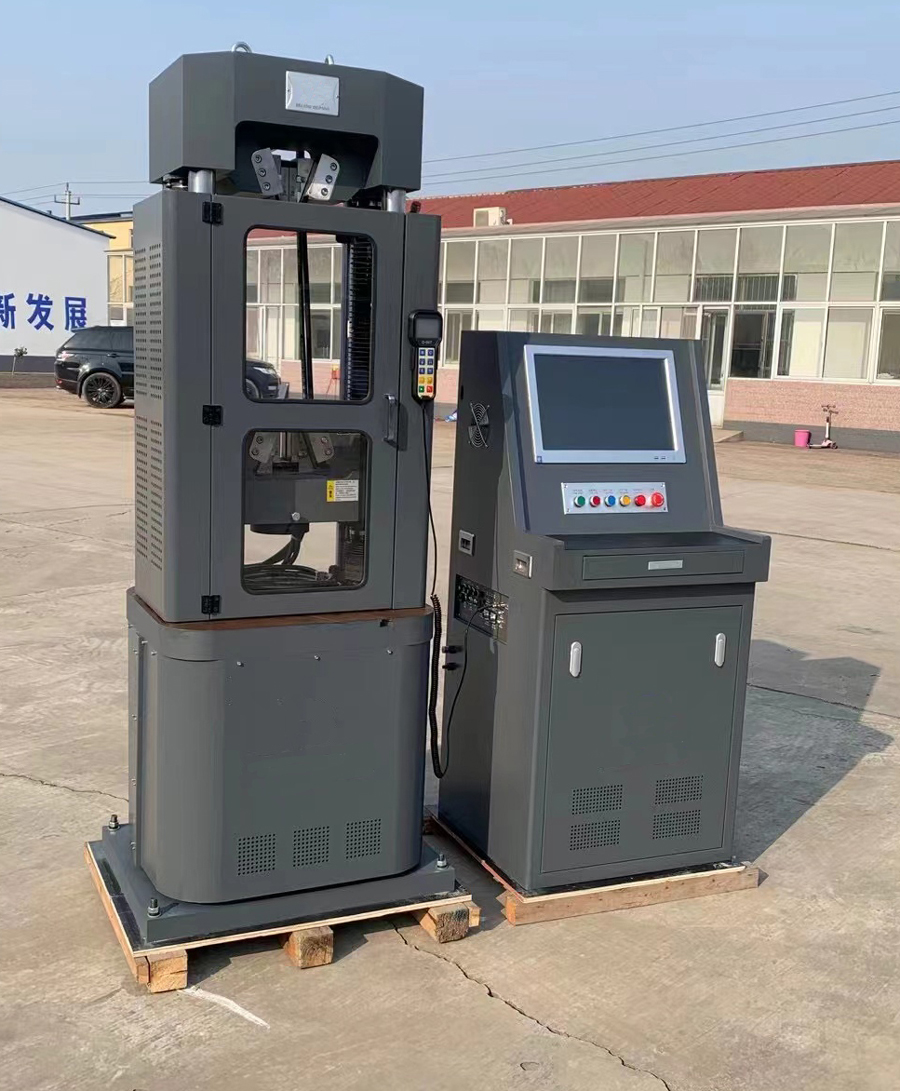

Serdo-hydraulic serva yisi yose imashini igerageza
Microcomputer igenzurwa na servo-hydraulic serval imashini ipima ibikoresho bya servo + umuvuduko wamavuta menshi, umubiri nyamukuru nubugenzuzi. Ifite ibiranga imikorere yoroshye kandi byoroshye, imikorere ihamye kandi yizewe, ihamye nyuma yikibazo cyo hejuru. Birakwiriye kuri tensile, kwikuramo, kunama no gupima inkoni yicyuma, sima, beto, plastike, igiceri nibindi bikoresho. Nigikoresho cyiza cyo kwipimisha inganda n’inzego z’ibihugu by’inganda, ubukemurampaka bw’ibicuruzwa, ibihugu by’ubushakashatsi mu bumenyi, amashuri makuru na kaminuza, Ubwubatsi n’amashami.
Ikizamini gisanzwe
◆ Φ 170 cyangwa Φ IKIMENYETSO CY’IKIZAMINI.
◆ Ibice 2 byingutsi kazenguruka;
◆ Isahani Icyitegererezo Clip 1 gushiraho
◆ Isahani icyitegererezo cyo guhagarika ibice 4.
Ibisobanuro bya tekiniki:
|
Icyitegererezo
|
WE-100B
|
WE-300B
|
WE-600B
|
WE-1000B
|
|
Max. Imbaraga
|
100KN
|
300KN
|
600KN
|
1000KN
|
|
Kuzamura umuvuduko wo hagati
|
240 mm / min
|
240 mm / min
|
240 mm / min
|
240 mm / min
|
|
Max. Urwego rwo kwikuramo
|
500 mm
|
600mm
|
Mm 600
|
600mm
|
|
Max.Setred Spacing
|
Mm 600
|
700mm
|
MM 700
|
700mm
|
|
Intera ifatika hagati yinkingi ebyiri
|
380mm
|
380mm
|
375mm
|
455mm
|
|
Piston stroke
|
MM 200
|
200mm
|
MM 200
|
200mm
|
|
Max. Umuvuduko wa Piston
|
100 mm / min
|
120mm/min
|
120 mm / min
|
100mm/min
|
|
Kuzenguruka icyiciro cya disple
|
Φ6 mm – φ22mm
|
Φ10 mm – φ32mm
|
Φ13mm-f40mm
|
Φ14 mm -f45mm
|
|
Guhobera cyane
|
0 mm -15mm
|
0 mm -20mm
|
0 mm -20mm
|
0 mm -40mm
|
|
Max. Intera ya Fulcrum mu kizamini cyunamye
|
Mm 300
|
300mm
|
Mm 300
|
300mm
|
|
Hejuru no kumanura plaque
|
Φ110mm
|
Φ150mm
|
Φ200mm
|
Φ225mm
|
|
Rusange
|
800x620x1850mm
|
800x620x1870 mm
|
800x620x1900mm
|
900x700x2250 mm
|
|
Ibipimo bya marike ya peteroli
|
550x500x1200 mm
|
550x500x1200 mm
|
550x500x1200mm
|
550x500x1200 mm
|
|
Imbaraga
|
1.1KW
|
1.8KW
|
2.2KW
|
2.2KW
|
|
Uburemere
|
1500KG
|
1600KG
|
1900KG
|
2600KG
|
