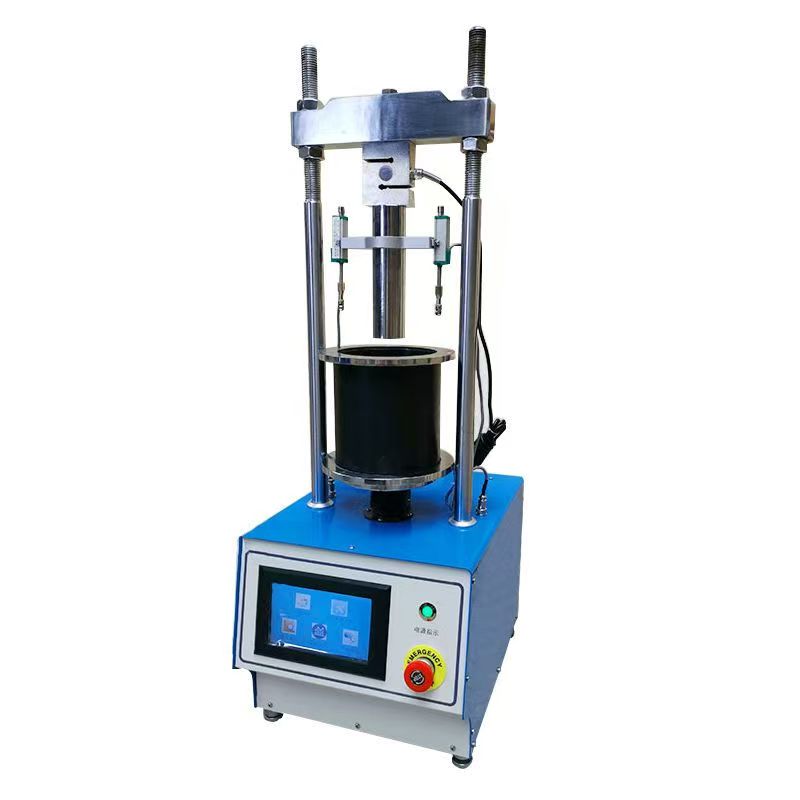

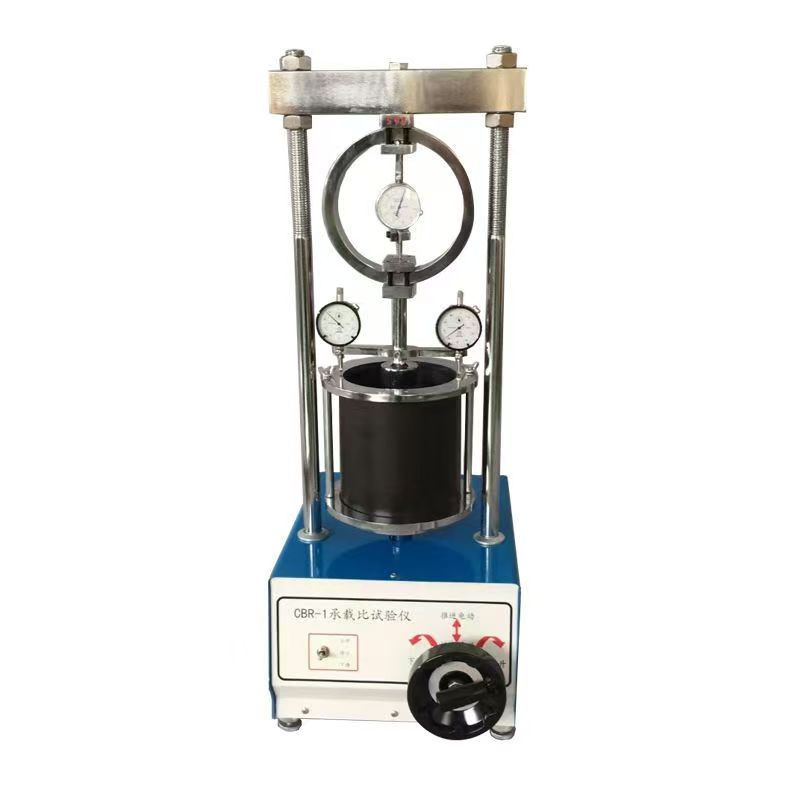

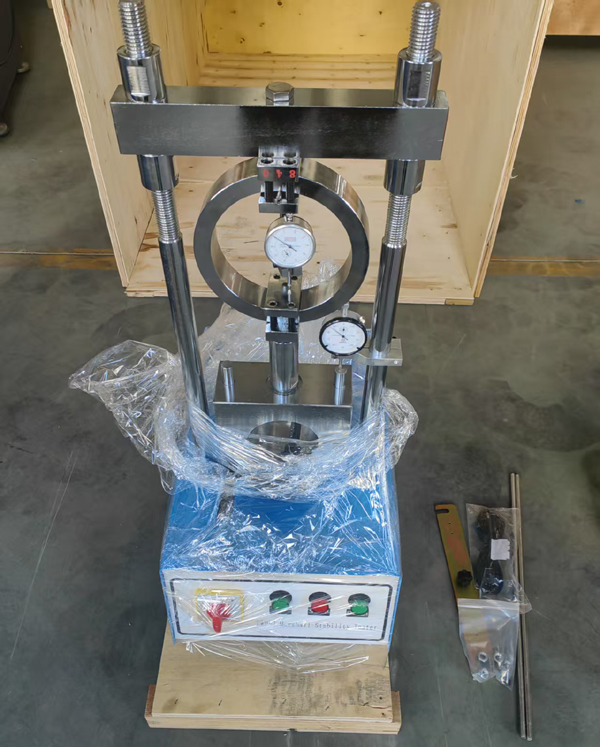

Ubutaka butanga ikizamini cya laboratoire cbr

Icyitegererezo Cbr-Ndumiwe tester:

Umuvuduko: 1mm / min, igitutu ntarengwa 3 t.

Kwinjira Rod: Kurangiza isura diameter φ50mm.

Ikimenyetso cya Dial: 0-10mmis 2.

Isahani nyinshi: ibice bibiri.

Gupakira isahani: ibice 4 (diameter yo hanze φ150mm, diameter yimbere φ52mm, buri 1.25Kg).

Ikizamini cyo kwipimisha: Diameter yimbere φ152mm, uburebure 170mm; Pad φ15mm, uburebure bwa 50mm hamwe nimikorere iremereye-iremereye.

Guhatira gupima impeta: 1 hashyizweho. Amashanyarazi yo gutanga amashanyarazi: 380v.

Uburemere Net: 73kg uburemere 86kg

Ibipimo: 57x43x100CM

Yagenewe gusuzuma laboratoire yagaciro ka CBR yumuhanda wumuhanda hanyuma uyobore kandi ubyerekeranye nimbaraga zibikoresho byatoranijwe bifite ingano nini munsi ya mm 19 (3/4 ").

UTS-0852 yagenewe gupakira Piston Piston mubutaka bwicyitegererezo ku gipimo cyo guhora cyo gupima umutwaro washyizwe mubikorwa na piston kwinjira mumwanya wateganijwe.

Imashini yateguwe kugirango ishizwe ku ntebe iboneye kandi igizwe na karakomeye kandi ihungabanye inkingi ebyiri hamwe nimbunda yo hejuru ishobora guhinduka. Ikadiri ifite ubushobozi bwa 50. Umuvuduko wikizamini ni 1.27 mm / min. kuri ASTM / EN / Aashto / BS / NF Ibizamini. Gupakurura no gupakurura biri munsi yitsinda ryimbere na Up / Hasi. Gupakurura umuvuduko ni udzumes 5 mm / min kugirango byoroshye kongera kugerageza.

Imashini yikizamini cya CBR itangwa yuzuye;

• Impeta ya Long, 50 KN

• Dial Dial Gaige 25 x 0.01 MM (UTGM-0148) Hamwe na Afite (UTS-0853)

• Panetration Piston (UTS-0870)
