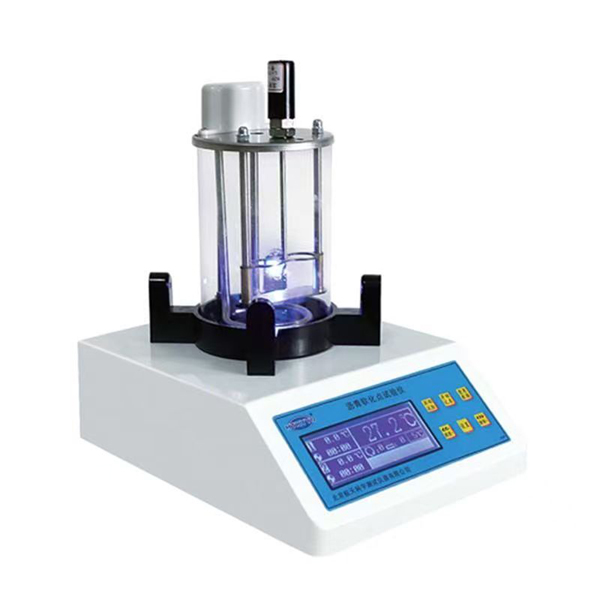

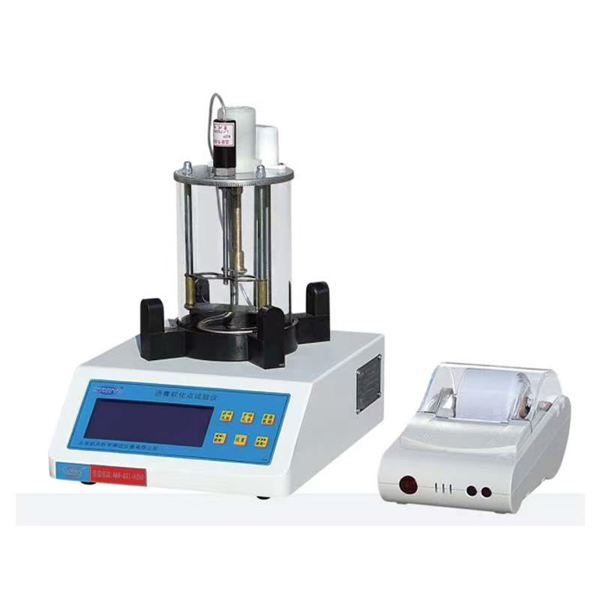

Asfalt yoroshye yerekana tester
◆ Ibiranga nyamukuru
1..
2. Igiti cyo hejuru cyane cyahinduwe cyahinduwe kugirango umuntu yemere kwizerwa ibice bigize uhitamo munsi yubushyuhe bwinshi.
3. Ibyiringiro byizewe byatoranijwe cyane, bihujwe na algorithm yacu yangirika, bigabanya neza urumuri rwinshi kandi ntabwo bigira ingaruka kubijyanye no kwivanga mumazi.
4. Yubatswe-muburyo bwa elegitoronike igenzurwa-umuvuduko wa magnetic stirrer (f-ubwoko).
5. Sisitemu ya software ishyigikira igishinwa nicyongereza, kandi irashobora guhinduka binyuze muri sisitemu.
6. Ibiranga amakuru nyayo yerekana, gushyushya umurongo kwerekana, na intoki cyangwa gufata amajwi.
7. Ishobora kubika amakuru agera kuri 999 yamakuru yikizamini, hamwe nigihe cyubatswe muri tag, yemerera gusiba cyangwa gucapa.
8. Ifite ubushobozi bwo guhuza imiyoboro ya protocole ebyiri zitumanaho, kandi irashobora guhuzwa na software yacu ya PC ikizamini cyo kohereza amakuru itaziguye (ishyigikiwe gusa mubiraro bimwe) cyangwa kubona amakuru yikizamini ukoresheje icyambu cya serial.
Syd – 2806f:
◆ Ibipimo ngenderwaho
1. Gupima ubushyuhe Ukuri: 0.1 ° C.
2. Gupima ubushyuhe buri: -5 – 125 ° C.
3. Igipimo cyo gushyushya: 5.0 ± 0.4 ° C / min nyuma yiminota itatu (hagati y’amazi)
4. Igihe cyukuri: 1 isegonda
5. Igihe cyagenwe: 0 – 99 iminota 99 amasegonda 99
6. Intera yo Kurenga: 25.4mm
7. Imiyoboro yikizamini: Imiyoboro 2
8. Amashanyarazi: AC220V ± 10%
9. Imbaraga ntarengwa: 800w
10. Muri rusange ibipimo: 320 × 210 × 315m
11. Uburemere bwose: 9kg
12. Ibipimo byo gupakira: 380 × 240 × 380mm
Syd – 2806h:
◆ Ibipimo ngenderwaho
1. Gupima ubushyuhe Ukuri: 0.1 ° C.
2. Gupima ubushyuhe ingingo: -5 – 180 ° C.
3. Igipimo cyo gushyushya: 5.0 ± 0.4 ° C / min (hagati y’amazi); 5.0 ± 0.5 ° C / min (melyrol) nyuma yiminota itatu
4. Igihe cyukuri: 1 isegonda
5. Igihe cyagenwe: 0 – 99 iminota 99 amasegonda 99
6. Intera yo Kurenga: 25.4mm
7. Imiyoboro yikizamini: Imiyoboro 2
8. Amashanyarazi: AC220V ± 10%
9. Imbaraga ntarengwa: 800w
10. Muri rusange ibipimo: 320 × 210 × 315m
11. Uburemere bwose: 9kg
12. Ibipimo byo gupakira: 380 × 240 × 350m
Ibicuruzwa bya Asfalt Ibicuruzwa:
Kumenyekanisha Labot Asfalt yoroshye Porogaramu yo gupima – Igikoresho cyingenzi kuri asfalt numwuga wubwubatsi. Yashizweho kugirango itange ibipimo nyabyo kandi byizewe, iki gikoresho cyo hejuru nigikoresho cyingenzi cyo kumenya aho uhuha n’ibindi bikoresho bya asfalt nibindi bikoresho bya asfalt, bifasha kugenzura ubuziranenge no kubahiriza ibipimo ngenderwaho.
Labot Ashalt Asphalt yoroshye tester ikoresha impeta nuburyo bwumupira, ni tekinike yemewe nini yo gusuzuma imitungo ya asfalt ya asfalt ya asfalt. Umukoresha-winshuti, ubugenzuzi bwimikorere nubushobozi bworoshye bworoshye bworoshye kubanyamwuga ndetse naba Novice kugirango bakoreshe. Igikoresho cyubatswe kugirango habeho kuramba cyane no mubidukikije bikaze bya laboratoire.
Iyi laboratoire ya Ashalt yoroshye tester ifite ibikoresho byateye imbere yubushyuhe bwo kugenzura ubushyuhe kugirango umenye neza ibicukuba byubushyuhe kubisubizo bihamye kandi bisubirwamo. Kwerekana neza kwa digitale bitanga gusoma igihe nyacyo, bituma abakoresha bakurikirana byoroshye inzira yoroshye. Byongeye kandi, ikizamini cyateguwe numutekano mubitekerezo no guhuza imirimo myinshi kugirango igabanye ibyago byimpanuka mugihe cyo gukora.
Waba ukora imirimo yo kubaka umuhanda, igishushanyo cya kaburimbo cyangwa ibyiringiro byiza, laboratoire ya laboratoire yoroheje testeri nigikoresho cyingenzi kuri laboratoire yawe. Ntabwo itezimbere uburyo bwawe bwo kwipimisha, ariko kandi byoroshya akazi kawe, kugukiza umwanya wingirakamaro numutungo.
Shora muri laboratoire ya laboratoire yoroheje testers uyumunsi hanyuma ufate ubushobozi bwa asfalt yawe kurwego rukurikira. Guhuza neza, kwizerwa no koroshya ikoreshwa, iyi tester nigisubizo cyiza cyo kwemeza ubuziranenge nubusabane bwibikoresho bya asfalt. Inararibonye uburyo ikoranabuhanga ryateye imbere rishobora guhindura inzira zawe zipimisha kandi tugera kubisubizo byiza mubipimo byose.
